Top Hat Install - Model EP13

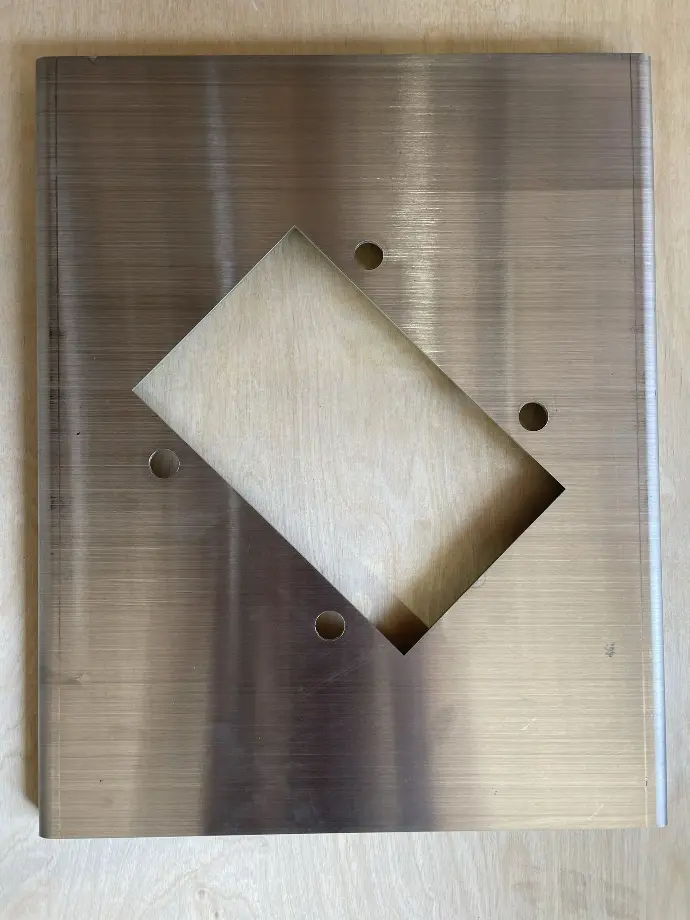

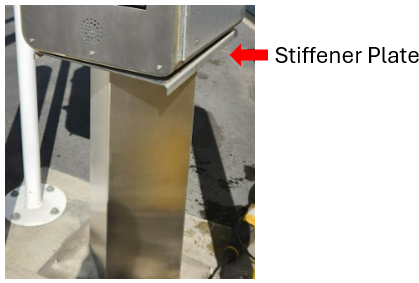

Step 1 - place the stiffener plate on top of the pedestal.

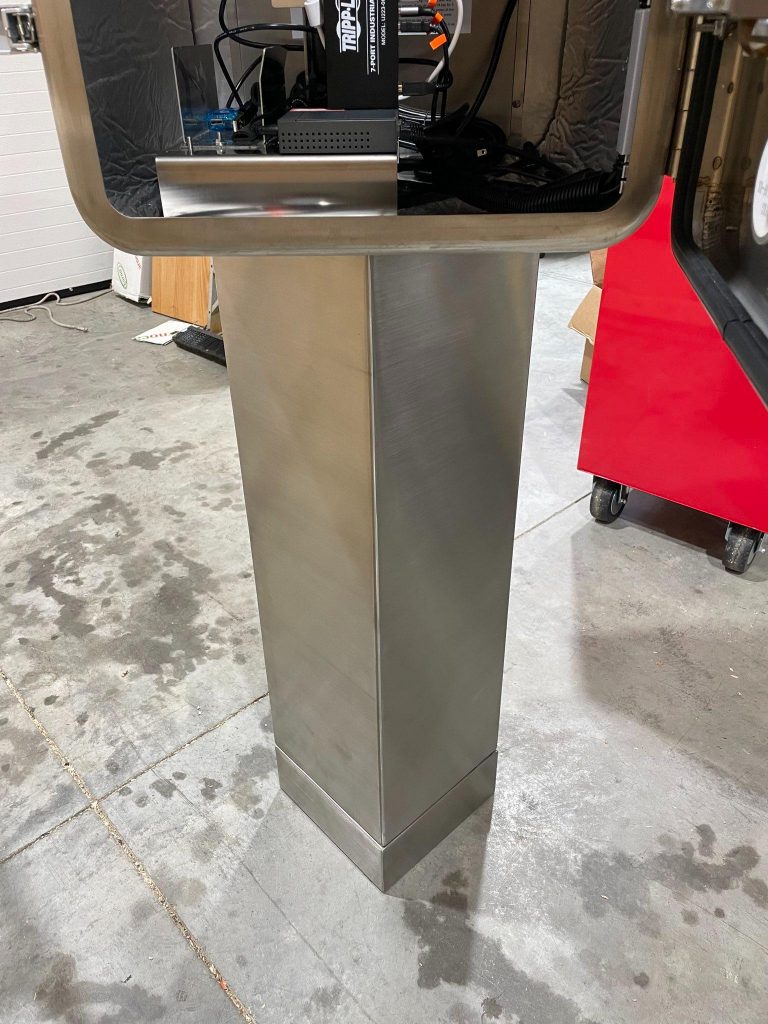

Step 2 - place the top hat on top of the stiffener plate on the pedestal.

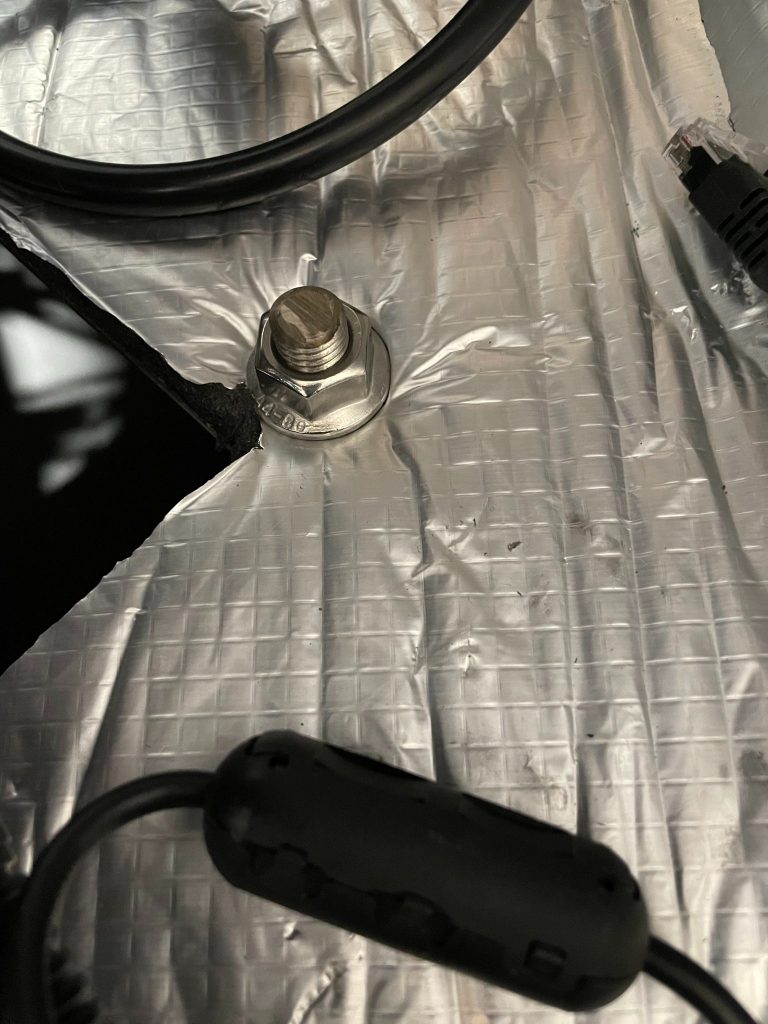

Step 3 - Secure the top hat to the pedestal by fastening the nut on the right side stud.

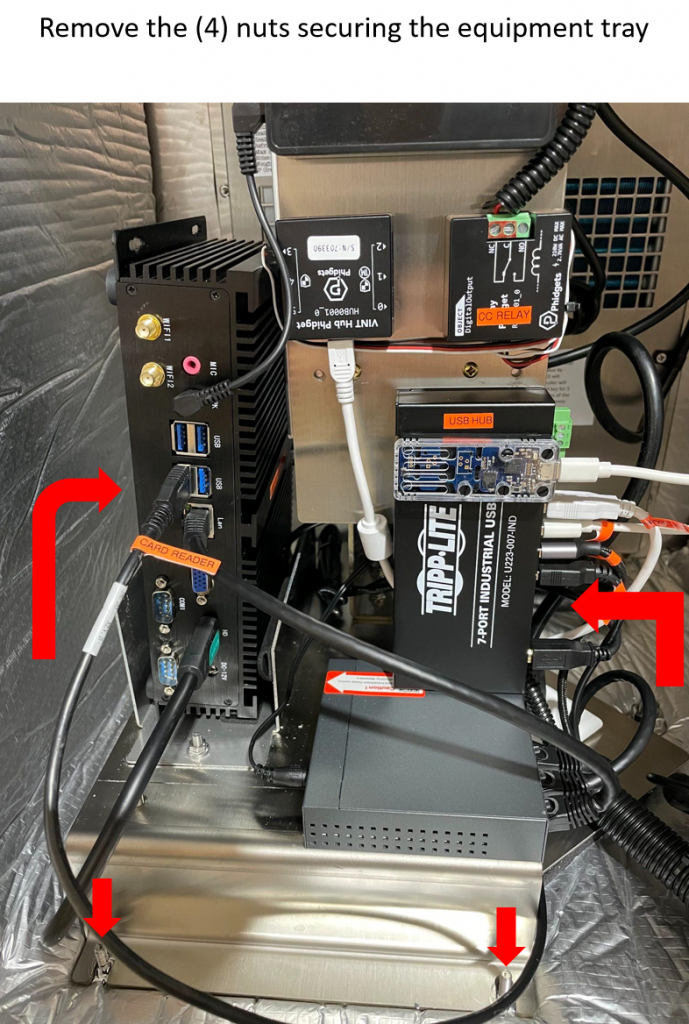

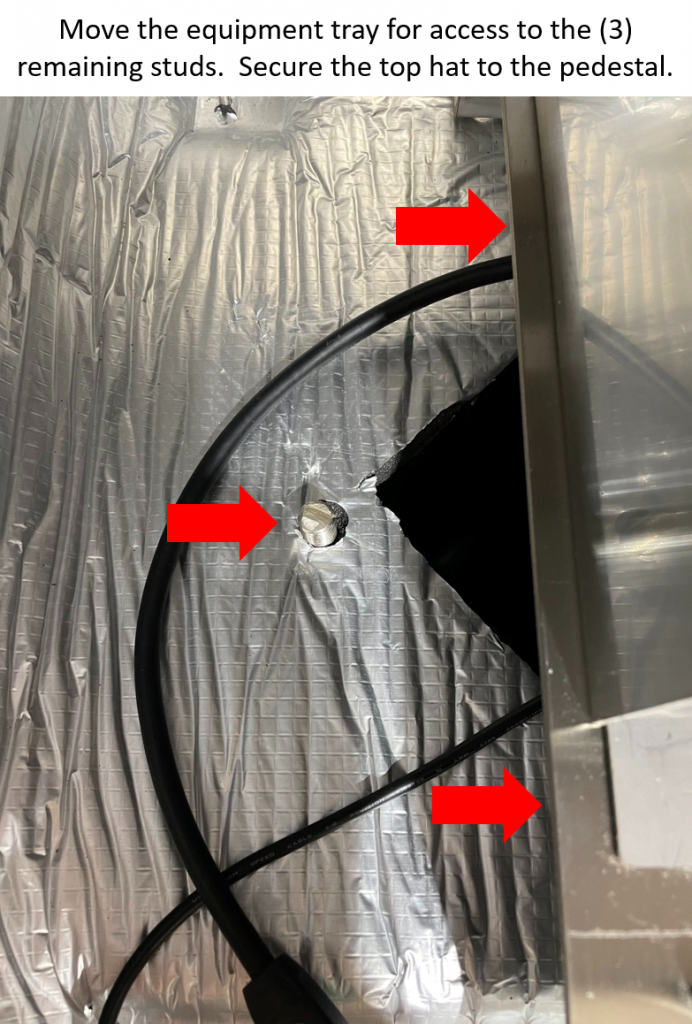

Step 4 - slide the equipment tray out of the way for access to the other studs.

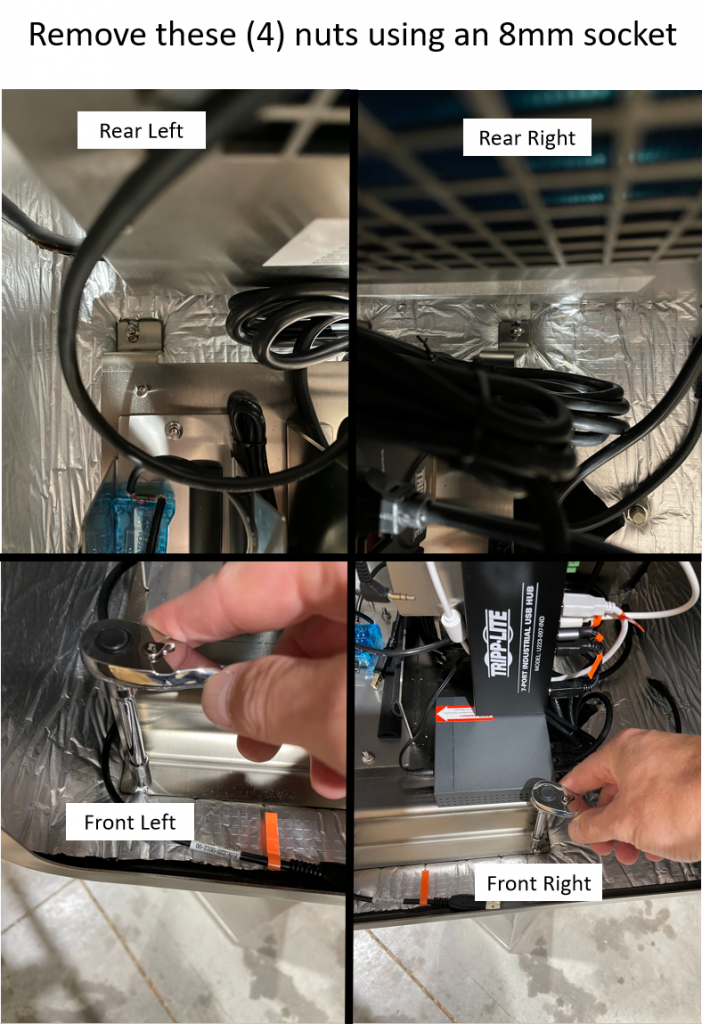

Step 5 - additional images of equipment tray nuts.

Step 6 - aditional imaging.

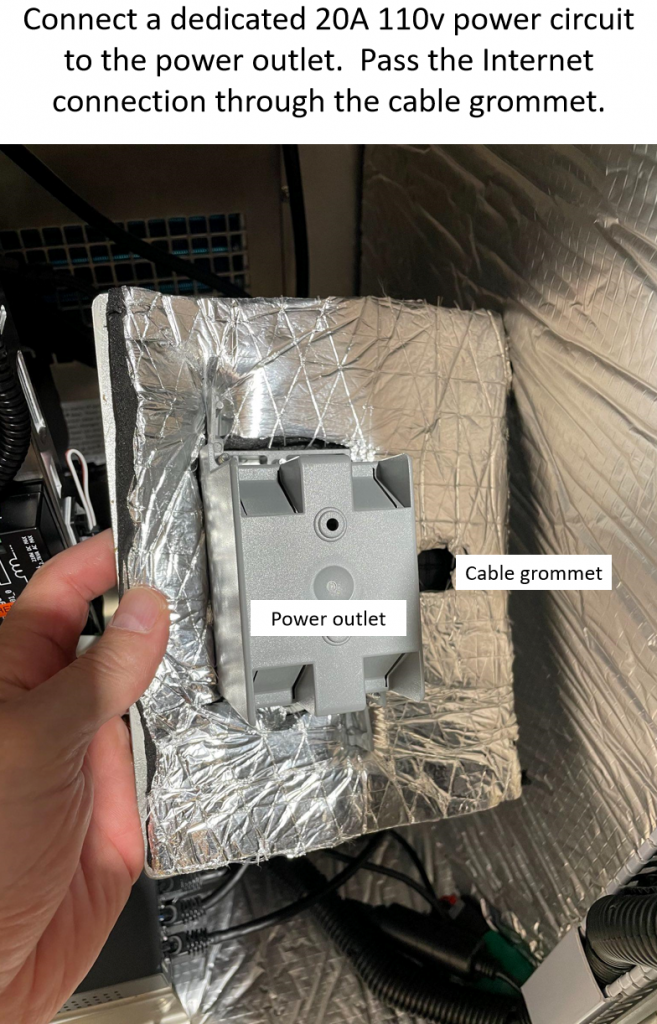

Step 7 - run the power and network wiring.

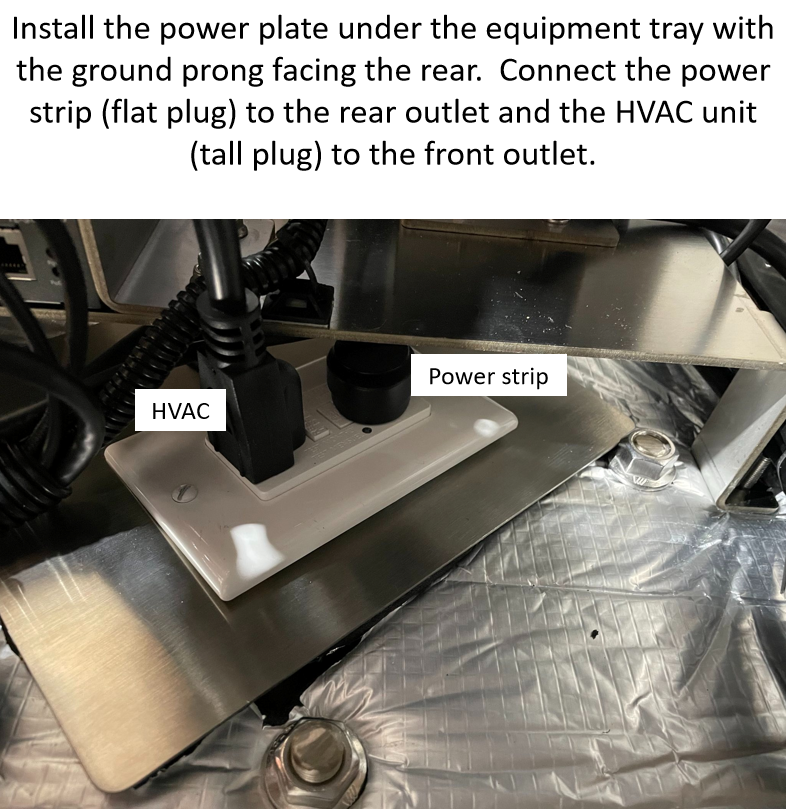

Step 8 - note the positioning of the power plate.

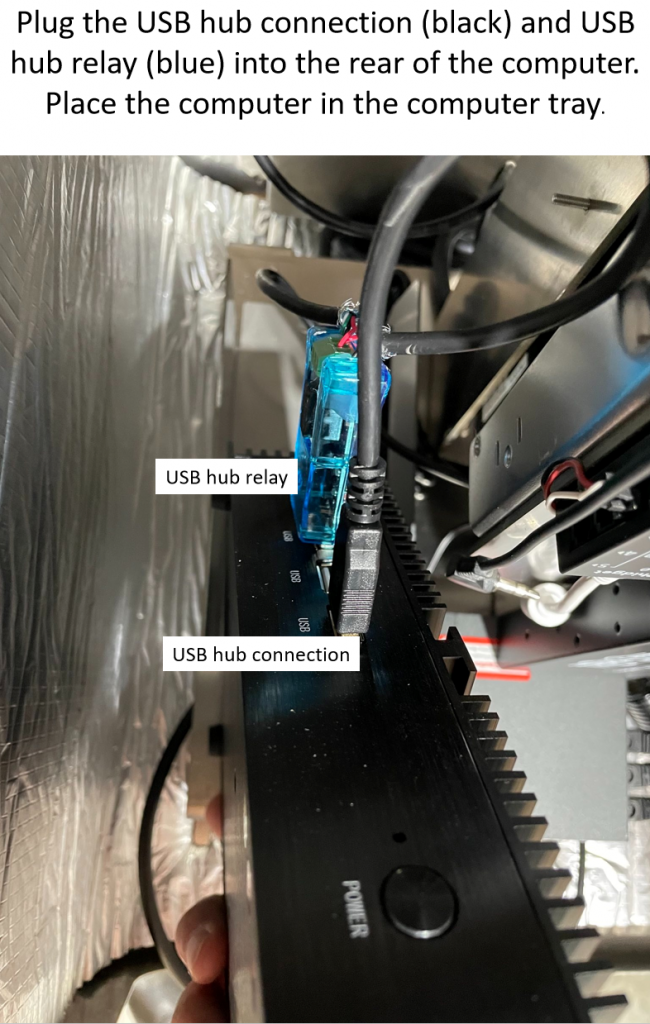

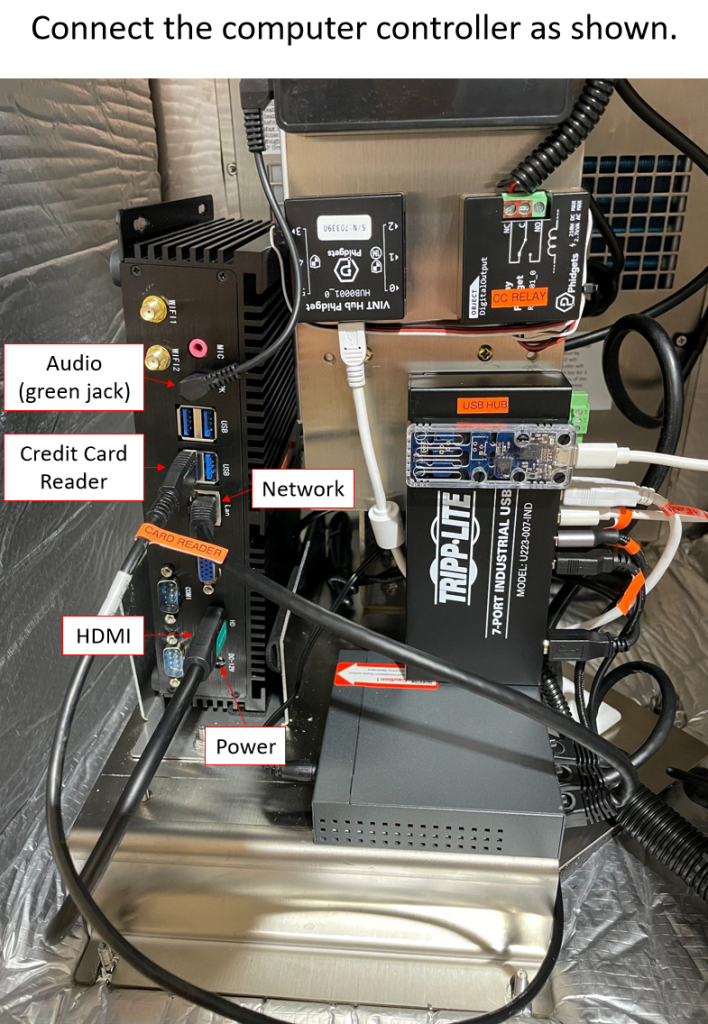

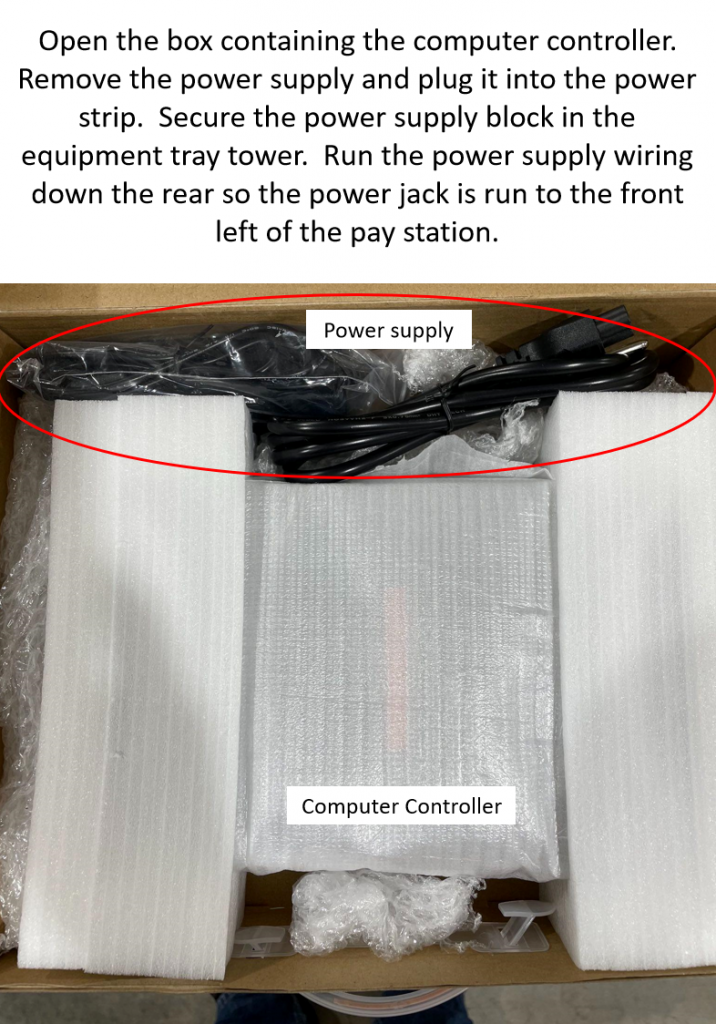

Step 9 - installing the computer controller.

Step 10 - connecting the USB hub.

Step 11 - plug in the peripherals as shown.  Note: do not ever connect the USB hub to a power source.

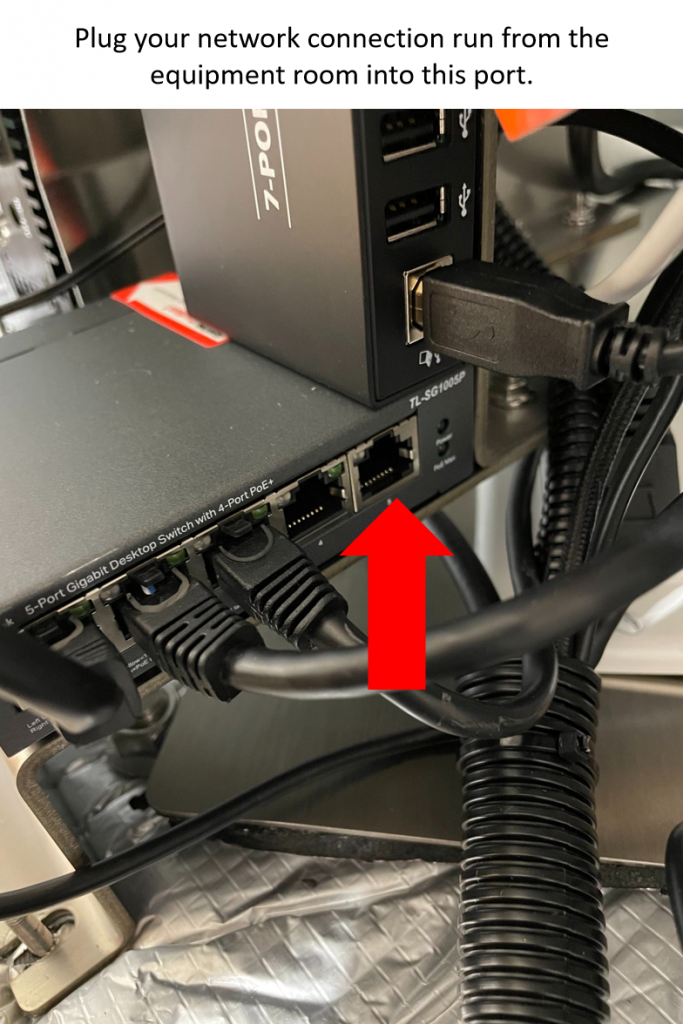

Step 12 - the network wire goes into port 5 of the switch.

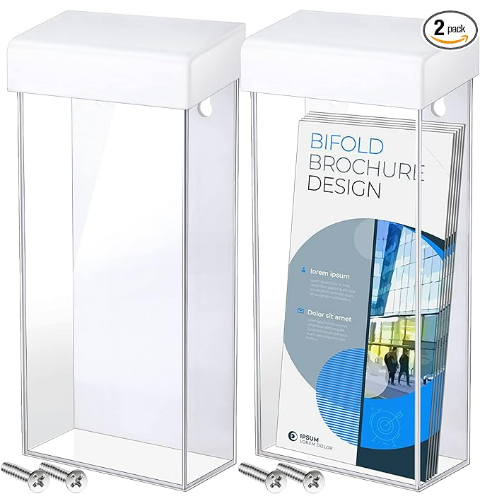

NOTE: Literature boxes as shown below are not provided by Dencar.  Purchase these off Amazon by searching "rack card holder" or "Outdoor Brochure Holder 4 x 9 Inch Waterproof Wall Mount Literature Box"
