Base Install - Model EP13

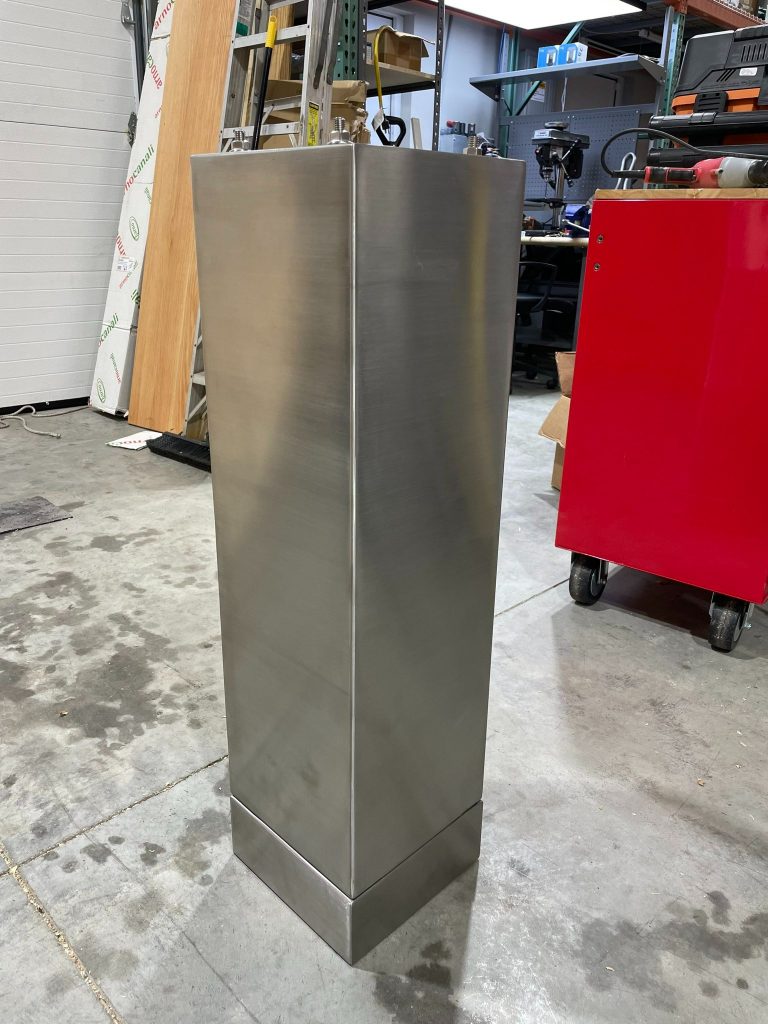

The pedestal may be mounted with or without the 4″ spacer. The 4″ spacer is designed to be used on sites with no curb, so the bottom of the spacer is the same as the bottom of the vehicle’s tires. When mounting on a curb, the 4″ spacer is not needed.

NOTE: the pedestal sits diagonal with a corner being the front of the pedestal.

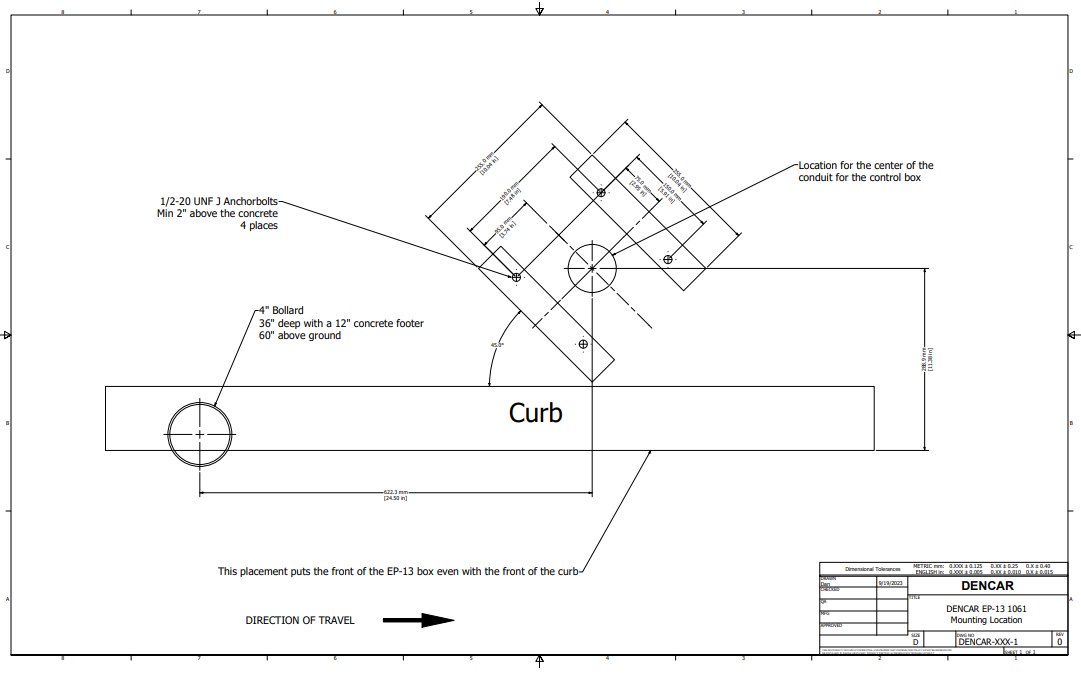

Mount the base (pedestal or pedestal + spacer) according to this diagram:

Download this file as a PDF

See the following pictures for install examples.

Any corner can be the front of the pedestal

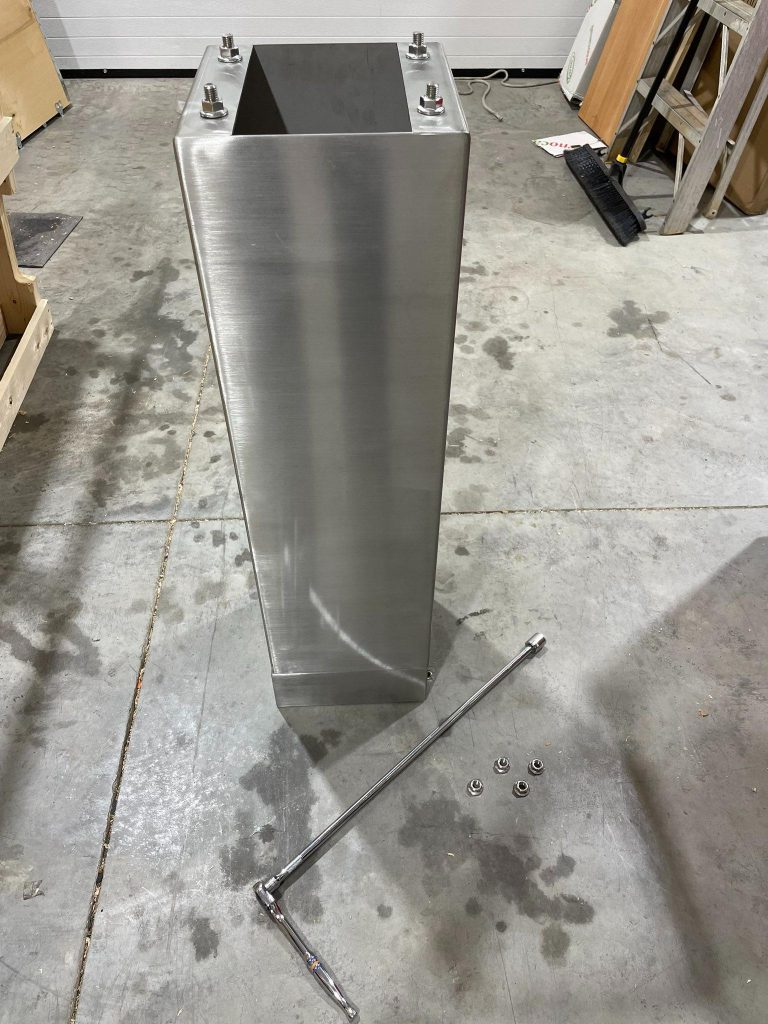

You'll need a ratchet extension and 19mm socket

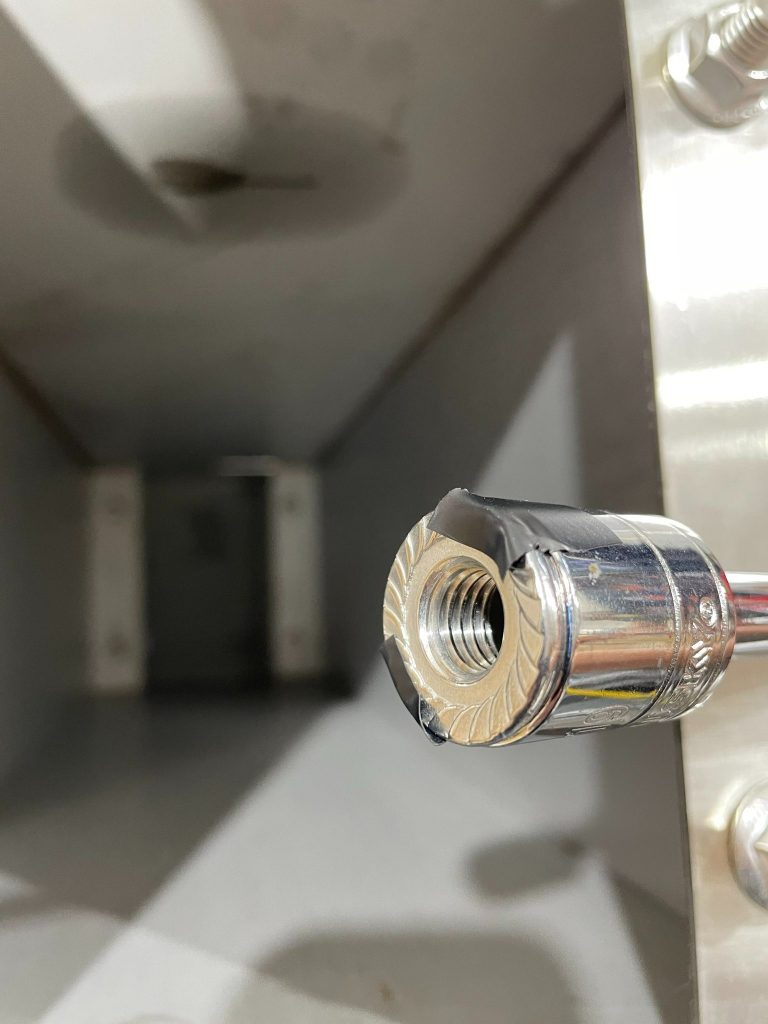

Tape the nut to the socket unless you have go-go gadget arms

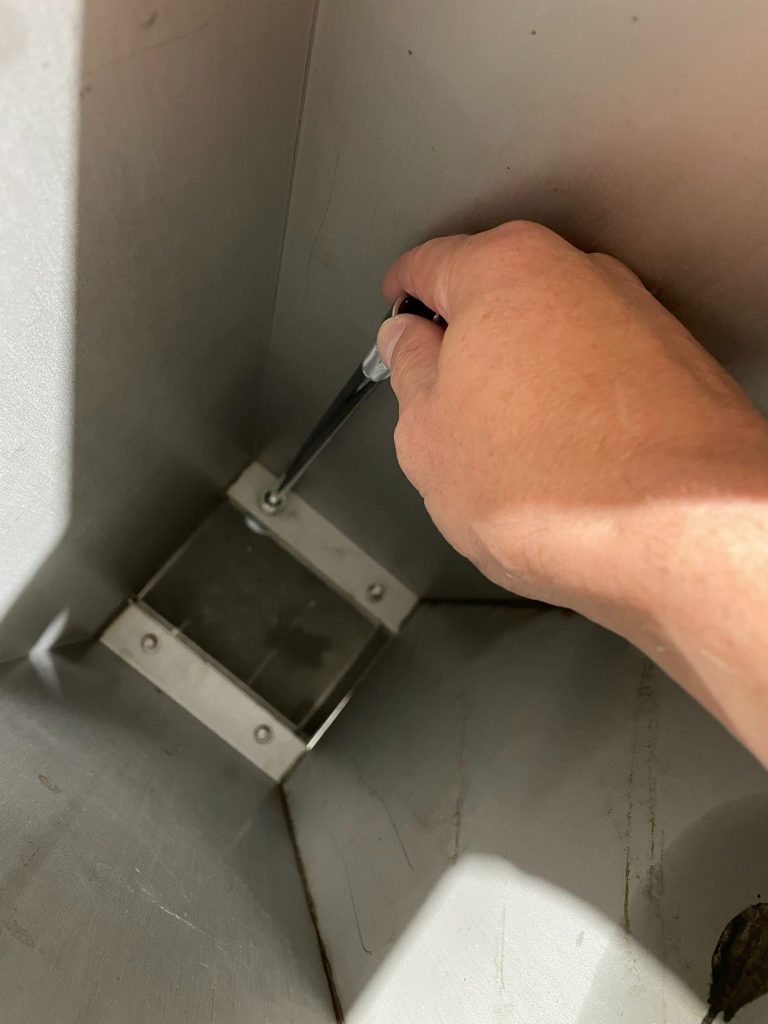

Attach to the spacer or ground as appropriate
